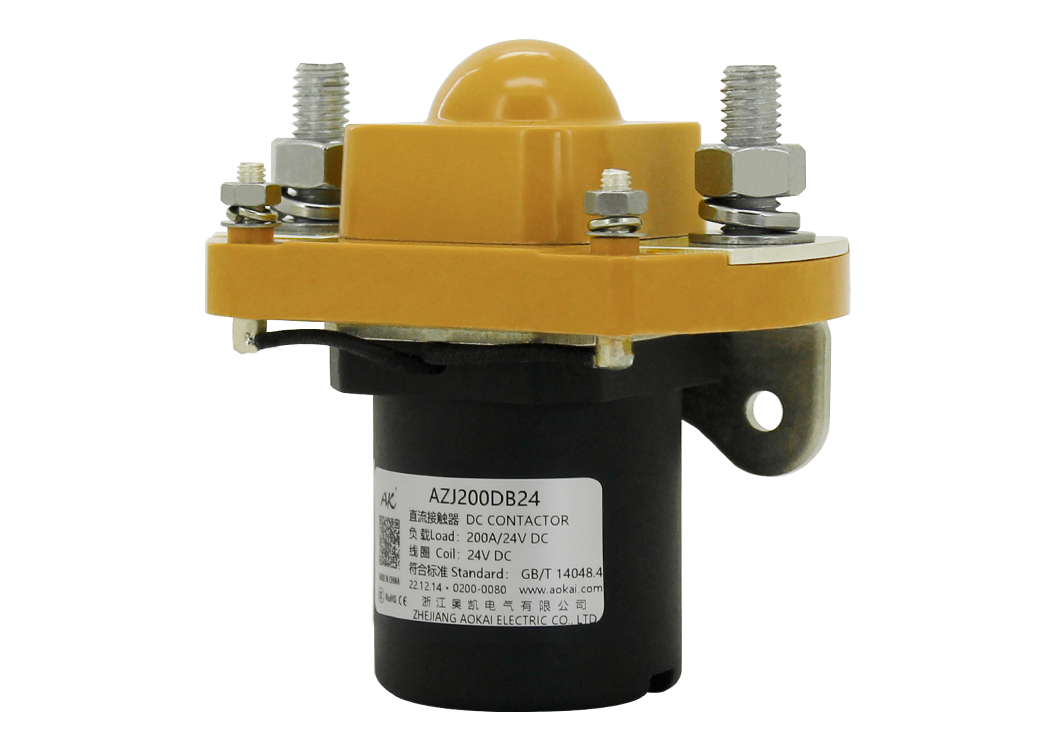

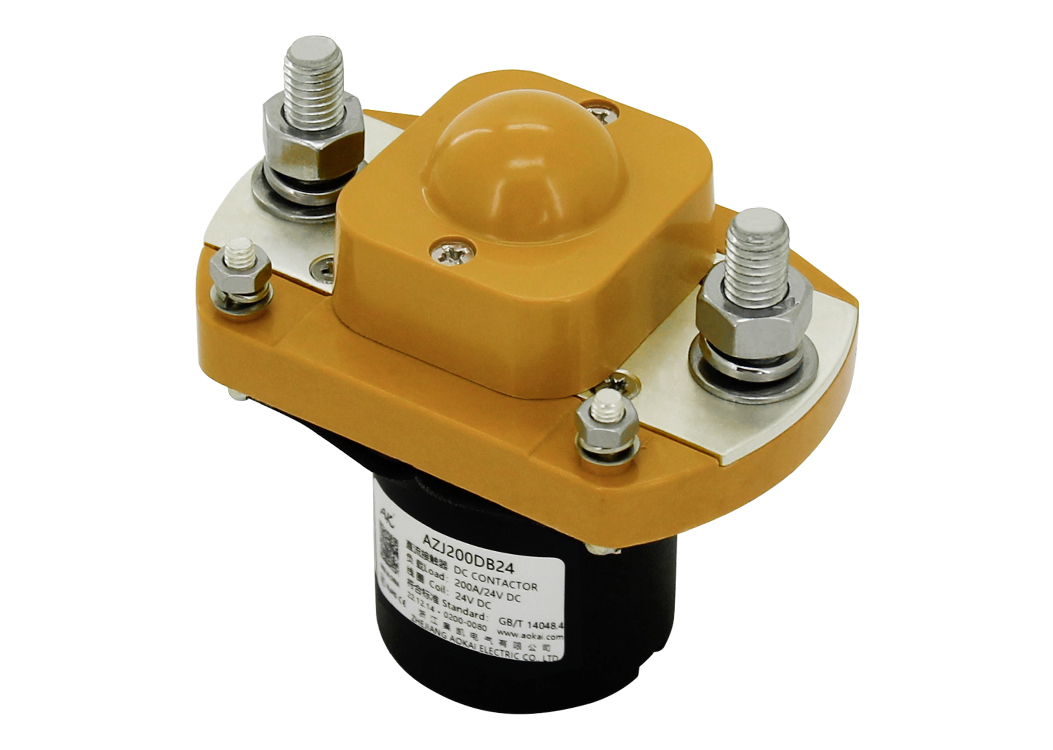

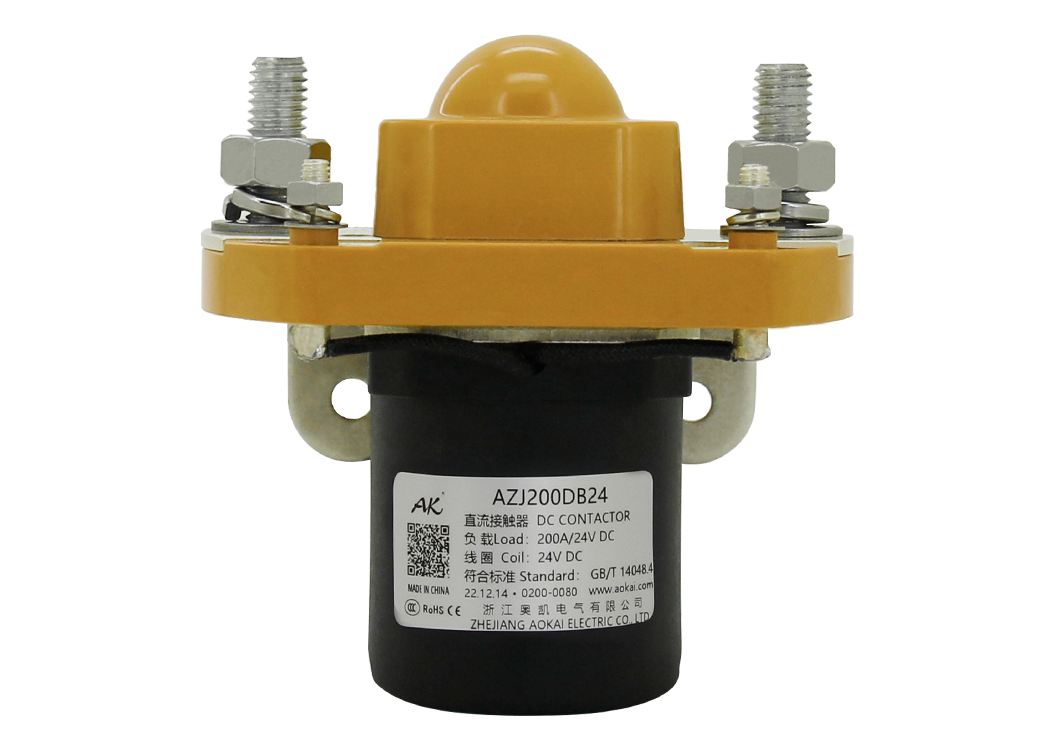

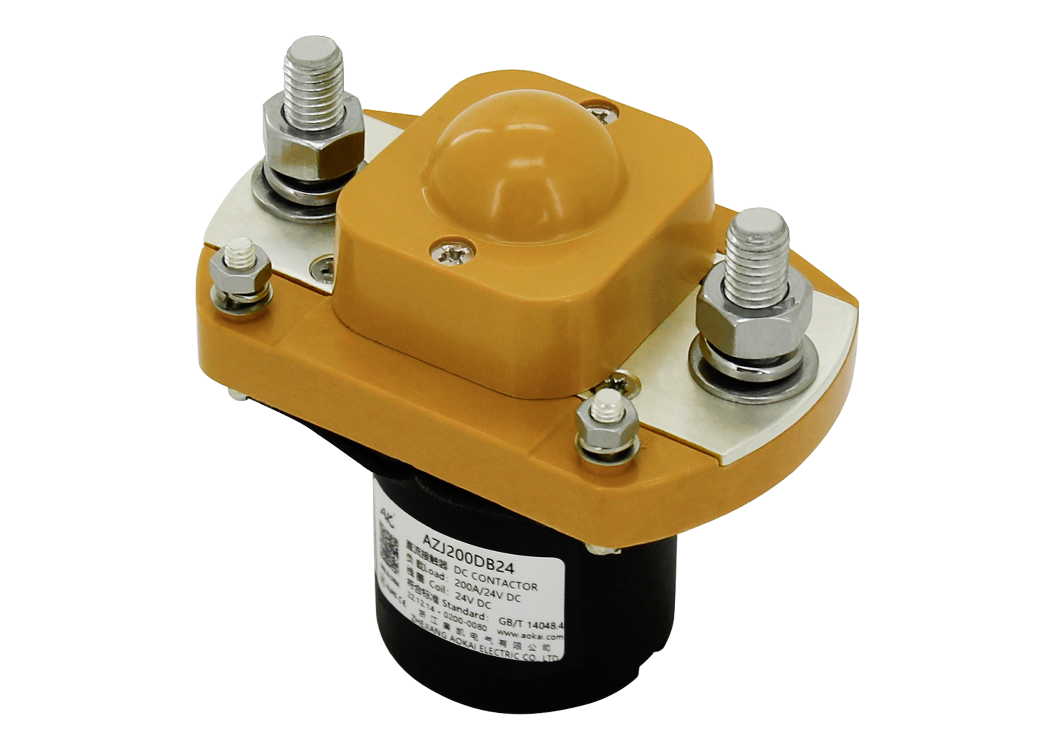

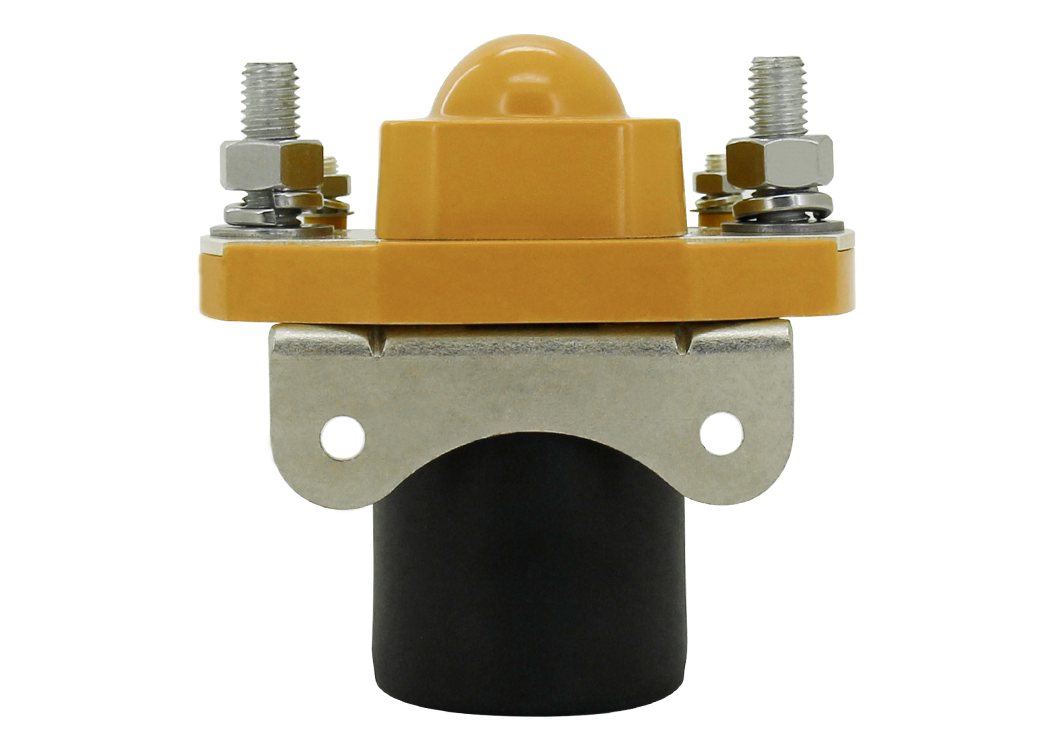

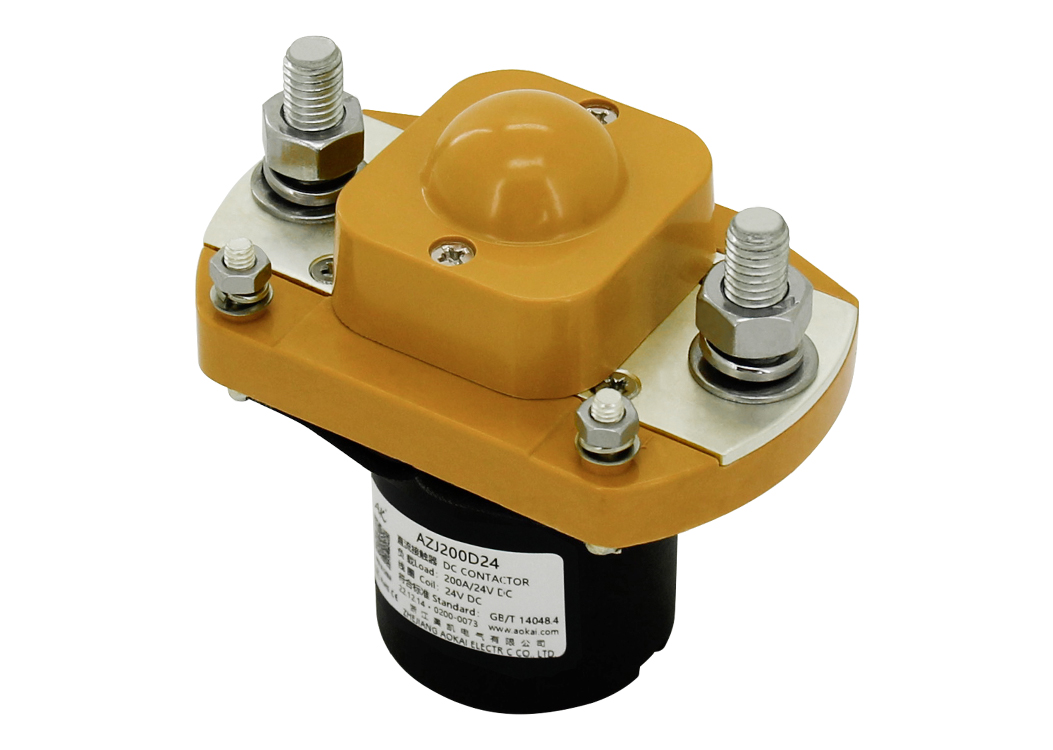

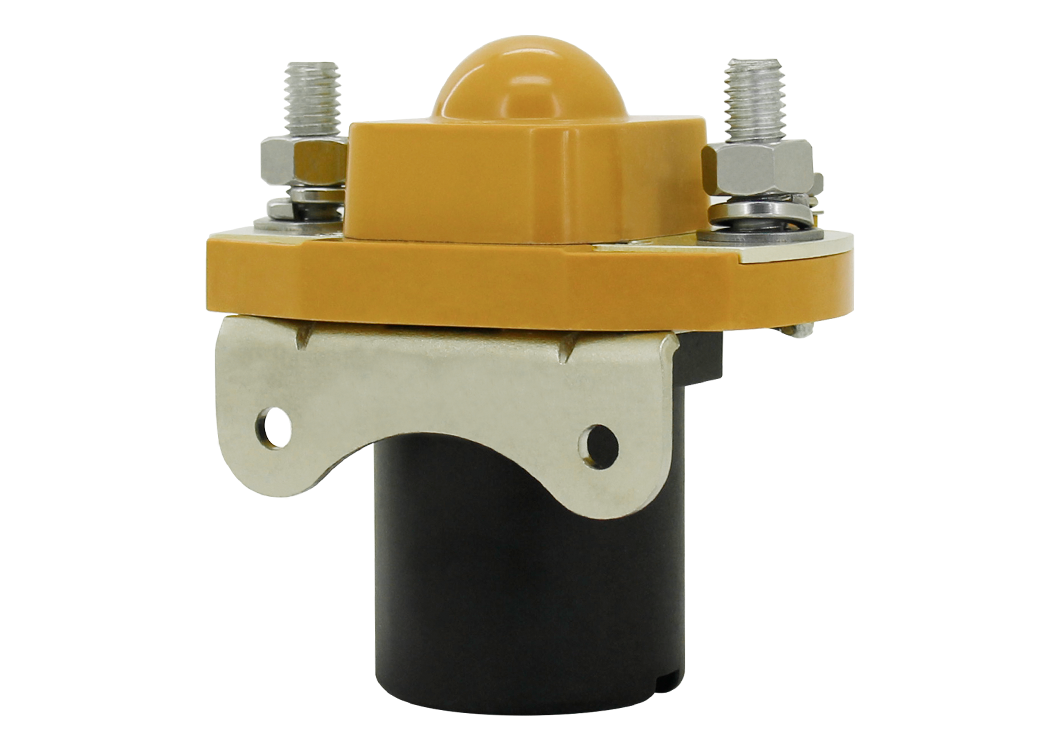

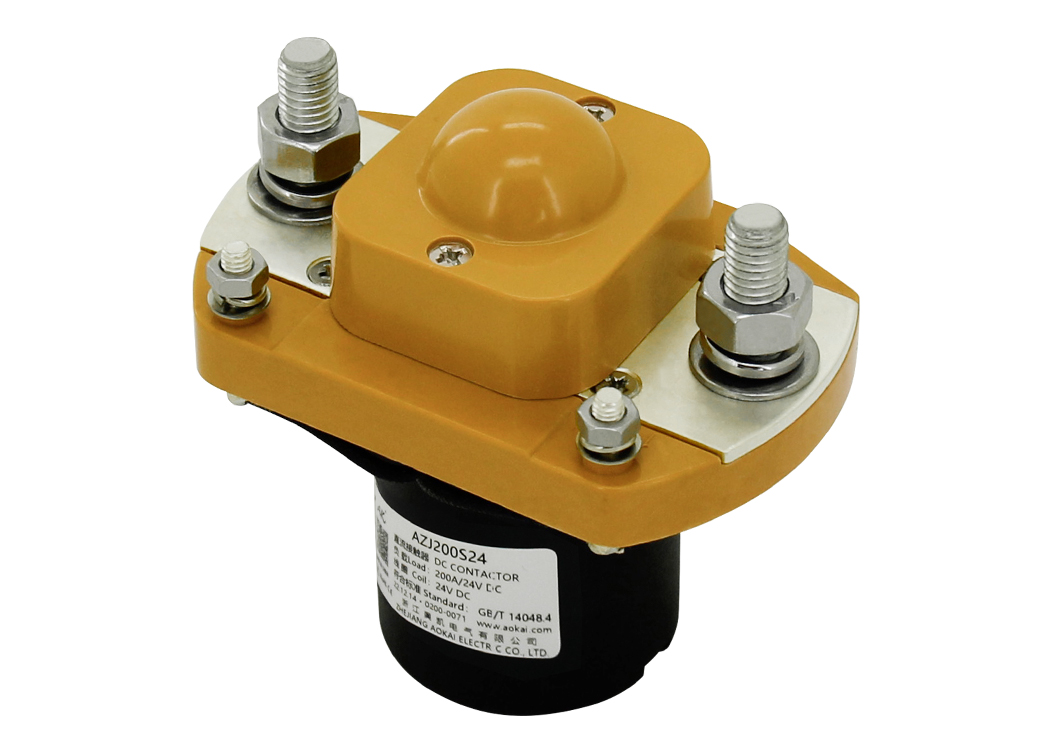

AZJ200DB DC Contactor-Aokai Electric

Performance Parameters（at23℃）

Contact Arrangement	1B（1NC）	Pickup Voltage		≤70%Us
Contact Resistance	≤0.5mΩ	Dropout Voltage		5%-40%Us
Contact Voltage Drop	≤80mV(at 200A)	Contact Bounce Period		≤5ms
Overload Current	≤7le,≯1s	Pickup Time		≤30ms
Temperature	-40℃~85℃	Dropout Time		≤30ms
Load Terminal	M8 External Thread	Dielectric Strength	Between Main Contacts	50Hz/60Hz 1500VAC/1min
Vibration	3.5g, 10~200Hz, 1/2 Sine Wave (Power On)	Dielectric Strength	Between Main Contacts and Coil	50Hz/60Hz 1500VAC/1min
Relative Humidity	5％~95％RH	Insulation Resistance	Initial State	100MΩ 1min
Dimension	85mm56mm86mm	Insulation Resistance	After Electrical Life	50MΩ 1min
Operating Duty	Continuous	Shock	Stability	2.5g (Power On)
Electrical Durability with Load (Resistive)	≥20,000 Times	Shock	Strength	5g
负载接线力矩	6-10N.m	Mechanical Durability		≥100,000 Times
/	/	Coil Wiring Torque		1.2-2.0N.m

AZJ200DB Coil Parameter

Coil Voltage	Pickup Voltage	Dropout Voltage	Coil Resistance		Starting Power	Holding Power
Coil Voltage	Pickup Voltage	Dropout Voltage	Starting	Holding	Starting Power	Holding Power
12V	≤70%Us	5%-40%Us	0.8Ω±10%	28.8Ω±10%	180W±10%	5W±10%
24V	≤70%Us	5%-40%Us	3.2Ω±10%	115.2Ω±10%	180W±10%	5W±10%
36V	≤70%Us	5%-40%Us	7.2Ω±10%	259.2Ω±10%	180W±10%	5W±10%
48V	≤70%Us	5%-40%Us	12.5Ω±10%	450Ω±10%	180W±10%	5W±10%
60V	≤70%Us	5%-40%Us	20Ω±10%	720Ω±10%	180W±10%	5W±10%
72V	≤70%Us	5%-40%Us	28.8Ω±10%	1036.8Ω±10%	180W±10%	5W±10%

Model Coding

Outline Installation Dimension Drawing

Without Auxiliary Switch

With Auxiliary Switch

Wiring Diagram

Product Packaging Specifications

Product

Model

Packaging

Min. QTY of

Inner Packaging

Carton Size

(LxWxH cm)

Net Weight/PCS

(Max.) g

Total QTY

(pcs)

Net Weight

(Max.) kg

Gross Weight

(Max.) kg

AZJ200DB

Pearl Cotton+Carton

20 PCS/Layer

56x38.5x21

520

20.8

21.9

Note:

1、Multiple typical packaging specifications for each product category are only listed as examples for reference.

2、The actual weight of the packaging may fluctuate with environmental temperature and humidity. For specific batch weights, please contact your dedicated sales representative.

Usage Cautions

1、This document is only for customer selection reference, AOKAI has tried the best to ensure the accuracy of the information in this document. Product specifications and parameters may be changed due to product improvement etc., they may be inconsistent because of not updated in time. For the specific parameters and performance of each product, please refer to the samples provided by AOKAI and the corresponding signed and controlled specification.

2、Regarding the application of this product, please select the matching product according to your specific use conditions and environmental requirements when selecting the product. If the requirements are not clearly specified, please contact AOKAI to obtain more technical support.

3、When installing and using this product, regardless of wiring or fixed installation, it is required to use anti-loose spring washers.

4、The torque for installing fasteners should be within the standard range required by this specification. It may cause the unstable installation or damaging the product if the torque is lower than the minimum torque or higher than the maximum torque.

5、Do not install the contactor in places with strong magnetic fields (such as transformers or strong magnets), or close to objects with thermal radiation. It is recommended to use it with a cooling fan.

6、It is forbidden to use the product that have been dropped from a high place (height≥30cm).

7、It is forbidden to use the product in an environment with oil pollution, especially before wiring, it will seriously affect the main terminals conductivity if they are polluted by oil pollution, and affect the product life.

8、It is forbidden to use the product beyond the rated electrical life. When the rated electrical life is reached, although the product can continue to work, there is a risk of failure, explosion, and burning because of non-breaking.

9、This product cannot be used as a protector, and the circuit must be connected with a protector in series when using.

10、AOKAI only does the resistive electrical life verification and quality assurance. When the product is used in an environment with inductive load or capacitive load, it is recommended that the circuit should be connected in parallel with a surge protection device.

11、After continuous work, restarting immediately after disconnection will affect the pull-in voltage because the product is in a hot state, and the pull-in voltage will increase, which is a reasonable phenomenon.

12、It is strictly prohibited to wiring when power on.
