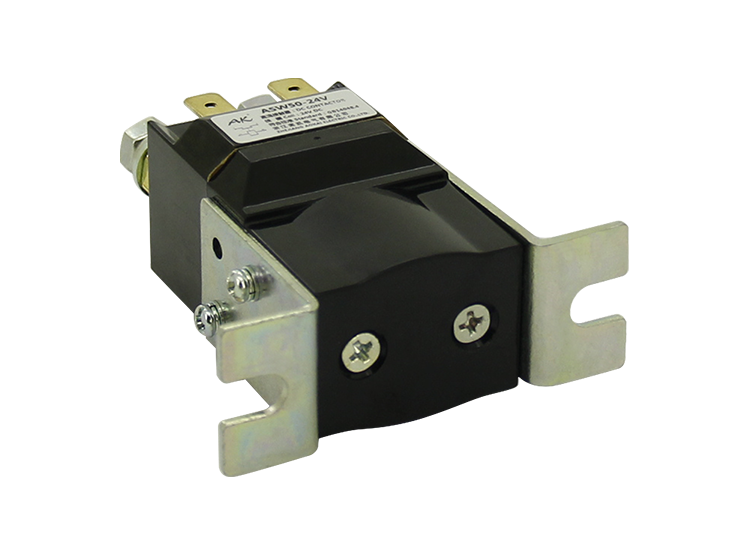

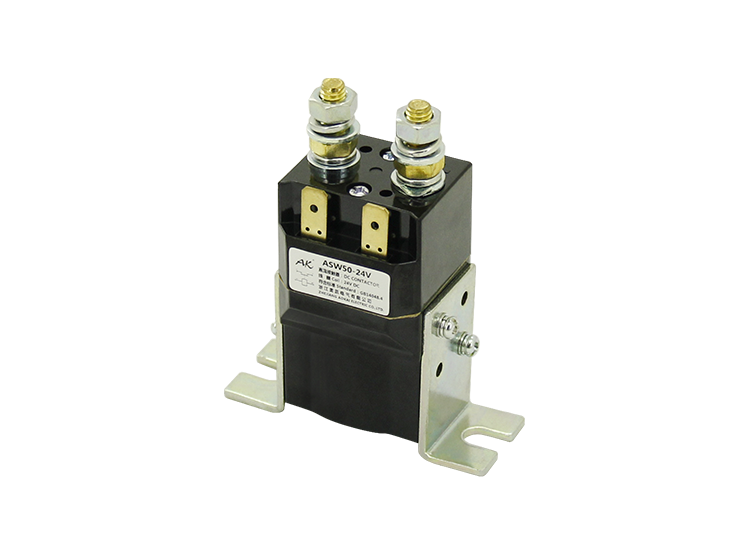

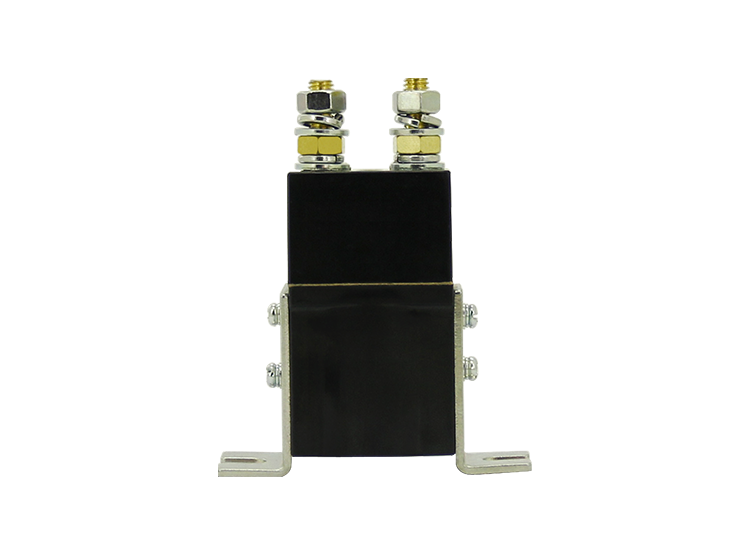

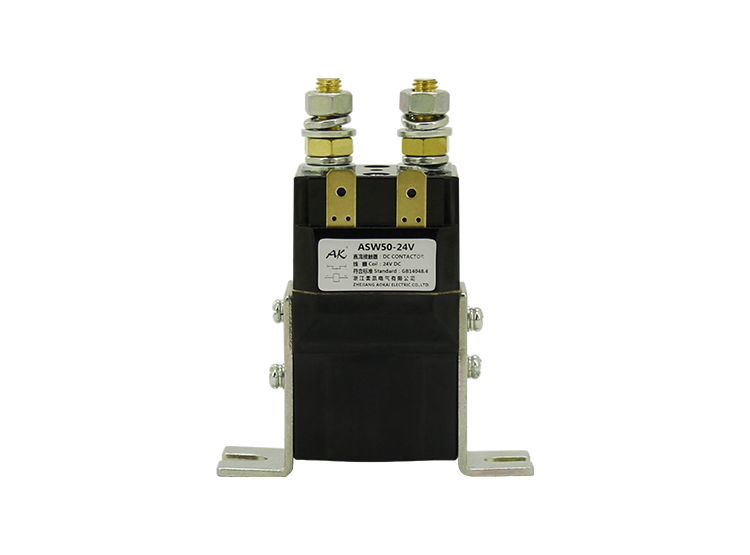

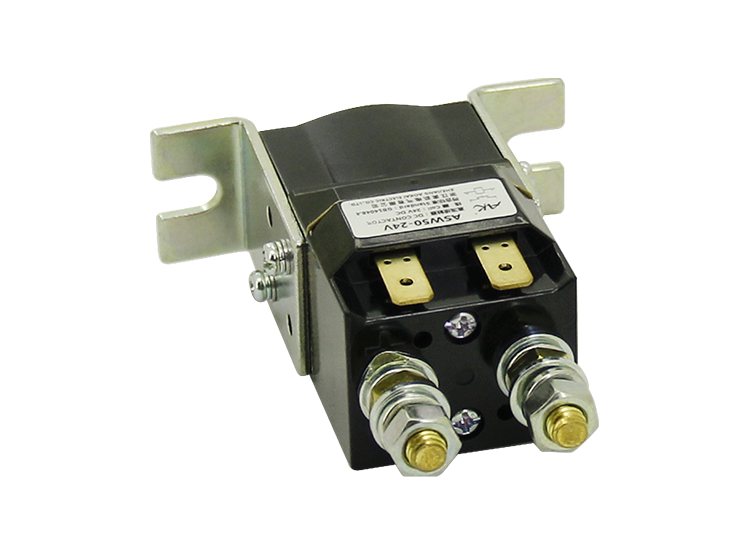

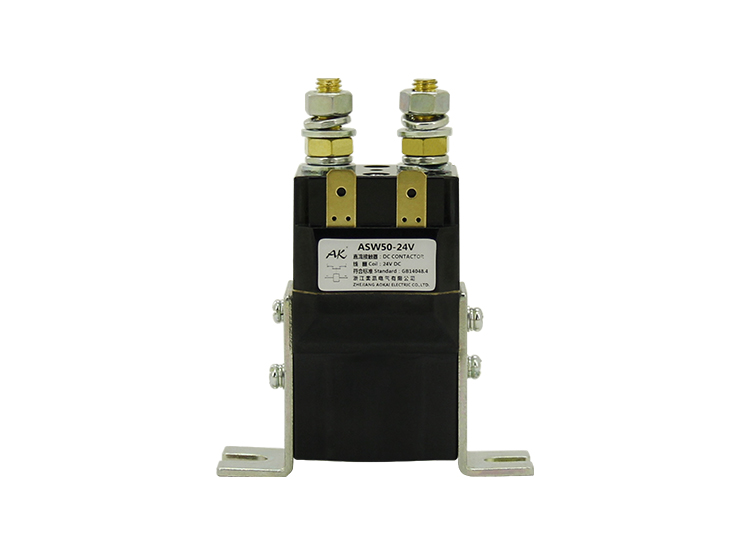

ASW50M DC Contactor
ASW50M
DC Contactor

Features

1、Continuous 50A load.

2、It has one set of bistable contacts

3、Coil power consumption ≤35W.

4、The insulation resistance reaches 100MΩ (1000VDC), and the withstand voltage between the contacts and the coil is 1kV.

5、IP protection level: IP40.

6、Compliant with IEC 60664-1, GB/T14048.1 and GB/T14048.4 requirements.

7、Compliant with RoHS (2015/863/EC) and REACH (1907/2006/EC) requirements.

8、Safety certificate: CE, RoHS.

Application Areas

50A-2000A, 12-110VDC, the main contact form has one group and two groups of normally open, one group and two groups of normally closed, one group and two groups of conversion, very flexible installation, low power consumption, low heat, non-stick, long life, reliable contact, can be with auxiliary contacts. Applied in inverter, 5G communication power supply, electric forklift, engineering vehicle, charger, AGV, battery pack field;

Product Certification

- Complies with RoHs (2002/95/EC);

Performance Parameters(at23℃)

Contact Arrangement

Bistable 1K (1NO),1B (1NC)

Pickup Voltage20%-80%Us

Contact Resistance

≤0.5mΩ

Dropout Voltage20%-80%Us

Contact Voltage Drop

≤80mV(at 50A)

Contact Bounce Period≤5ms

Overload Current

≤7le,≯1s

Pickup Time≤30ms

Temperature

-40℃~65℃

Dropout Time≤30ms
Load Terminal

M6 External Thread

Dielectric StrengthBetween Main Contacts50Hz/60Hz 1000VAC/1min
Vibration

3.5g, 10~200Hz, 1/2 Sine Wave (Power On)

Between Main Contacts and Coil50Hz/60Hz 1000VAC/1min

Relative Humidity

20%~90%RH

Insulation ResistanceInitial State100MΩ 1min

Dimension

36x33x83.5mm

After Electrical Life50MΩ 1min
Operating Duty

Continuous

Shock(60-100)times/min, Acceleration≤4g

Electrical Durability with Load

(Resistive)

≥6,000 Times

Mechanical Durability≥100000次
Load Wiring Torque

4-5N.m

Coil Wiring6.3*0.8 Spade Terminal
/

/

Pulse Width0.5~1S



ASW50M  Coil Parameter

Coil Voltage

Pickup Voltage VDC

Dropout Voltage VDC

Holding Current

Coil Power Consumption

12V

20%-80%Us

20%-80%Us

≤2.2A

20~35W

24V

20%-80%Us

20%-80%Us

≤1.1A

20~35W

36V

20%-80%Us

20%-80%Us

≤0.85A

20~35W

48V

20%-80%Us

20%-80%Us

≤0.8A

20~35W

60V

20%-80%Us

20%-80%Us

≤0.55A

20~35W
72V20%-80%Us20%-80%Us≤0.45A

20~35W


Model Coding


Outline Installation Dimension Drawing

ASW50M (Without Bracket)



ASW50MFS (Without Bracket)



ASW50ML (With Bracket)



ASW50MLFS (With Bracket)


Wiring Diagram





Usage Cautions

1、 This document is only for customer selection reference, AOKAI has tried the best to ensure the accuracy of the information in this document. Product specifications and parameters may be changed due to product improvement etc., they may be inconsistent because of not updated in time. For the specific parameters and performance of each product, please refer to the samples provided by AOKAI and the corresponding signed and controlled specification.

2、 Regarding the application of this product, please select the matching product according to your specific use conditions and environmental requirements when selecting the product. If the requirements are not clearly specified, please contact AOKAI to obtain more technical support.

3、 When installing and using this product, regardless of wiring or fixed installation, it is required to use anti-loose spring washers.

4、 The torque for installing fasteners should be within the standard range required by this specification. It may cause the unstable installation or damaging the product if the torque is lower than the minimum torque or higher than the maximum torque.

5、 Do not install the contactor in places with strong magnetic fields (such as transformers or strong magnets), or close to objects with thermal radiation. It is recommended to use it with a cooling fan.

6、 It is forbidden to use the product that have been dropped from a high place (height≥30cm).

7、 The driving power of the product coil must be bigger than or equal to the coil power of the product, otherwise the product switching ability will be reduced.

8、 When the coil is continuously energized, the coil voltage cannot exceed the maximum allowable voltage, otherwise the abnormal heating of the coil will affect its service life.

9、 This product is not waterproof. Please do not use it in an environment where water, solvent, or oil may come into contact with the casing or terminals. Otherwise, the aging of the casing or corrosion of the terminals may cause abnormal heating.

10、It is forbidden to use the product beyond the rated electrical life. When the rated electrical life is reached, although the product can continue to work, there is a risk of failure, explosion, and burning because of non-breaking.

11、This product cannot be used as a protector, and the circuit must be connected with a protector in series when using.

12、AOKAI only does the resistive electrical life verification and quality assurance. When the product is used in an environment with inductive load or capacitive load, it is recommended that the circuit should be connected in parallel with a surge protec￾tion device.

13、After continuous work, restarting immediately after disconnection will affect the pull-in voltage because the product is in a hot state, and the pull-in voltage will increase, which is a reasonable phenomenon.

14、It is strictly prohibited to wiring when power on.
